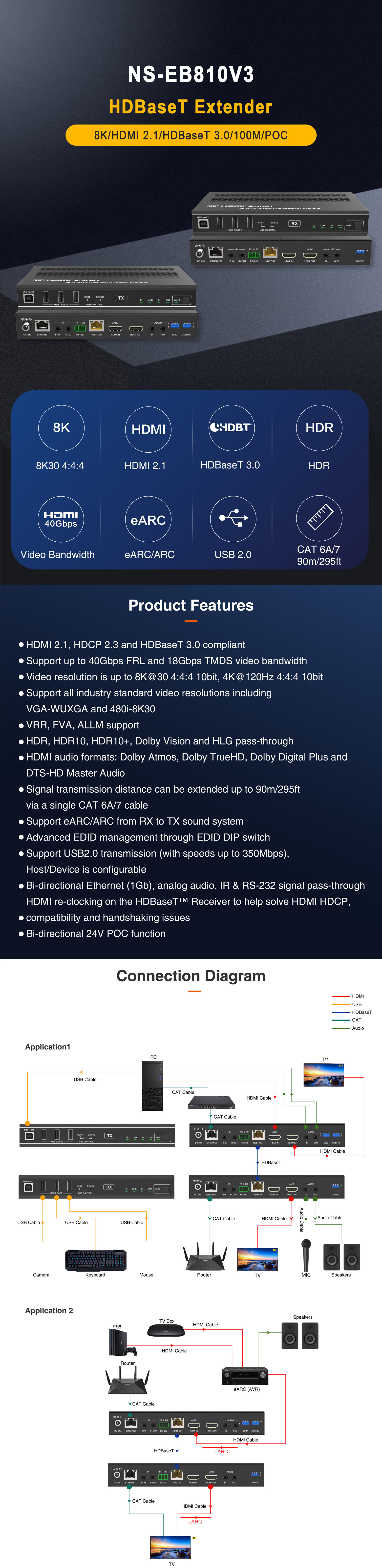

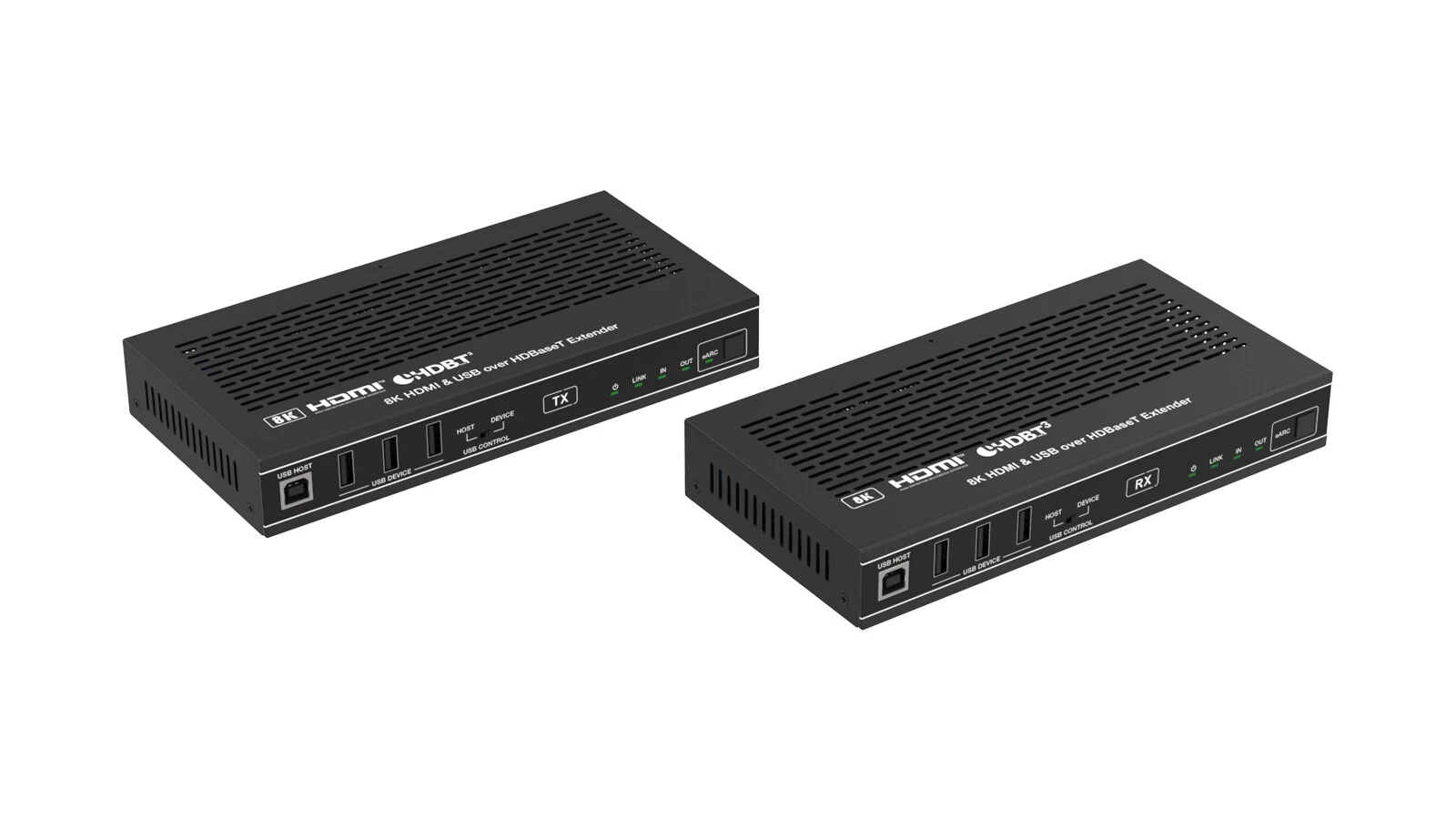

This 8K HDMI & USB over HDBaseT Extender can extend uncompressed

HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR,

1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT6A/7

cable. Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit,

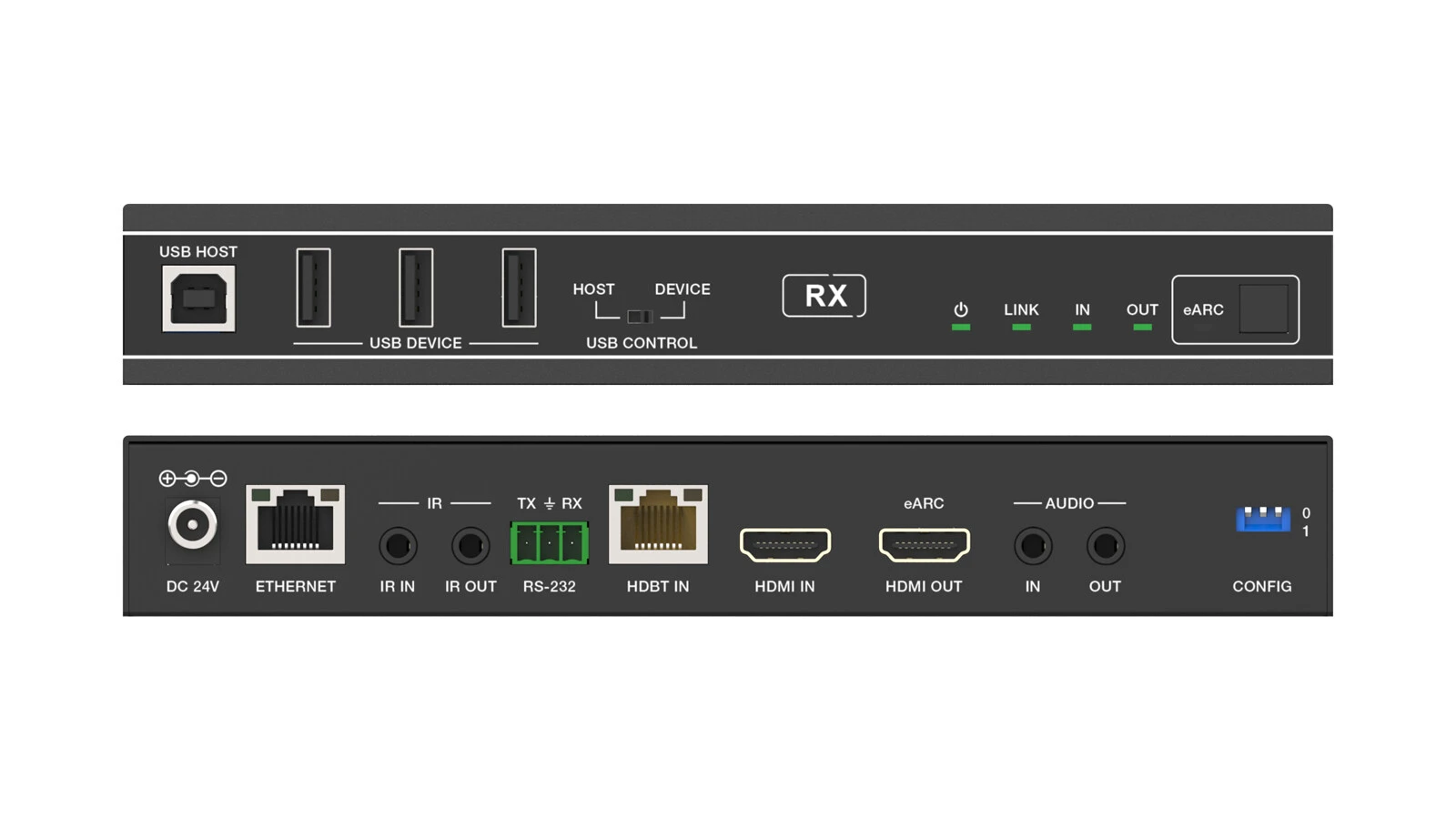

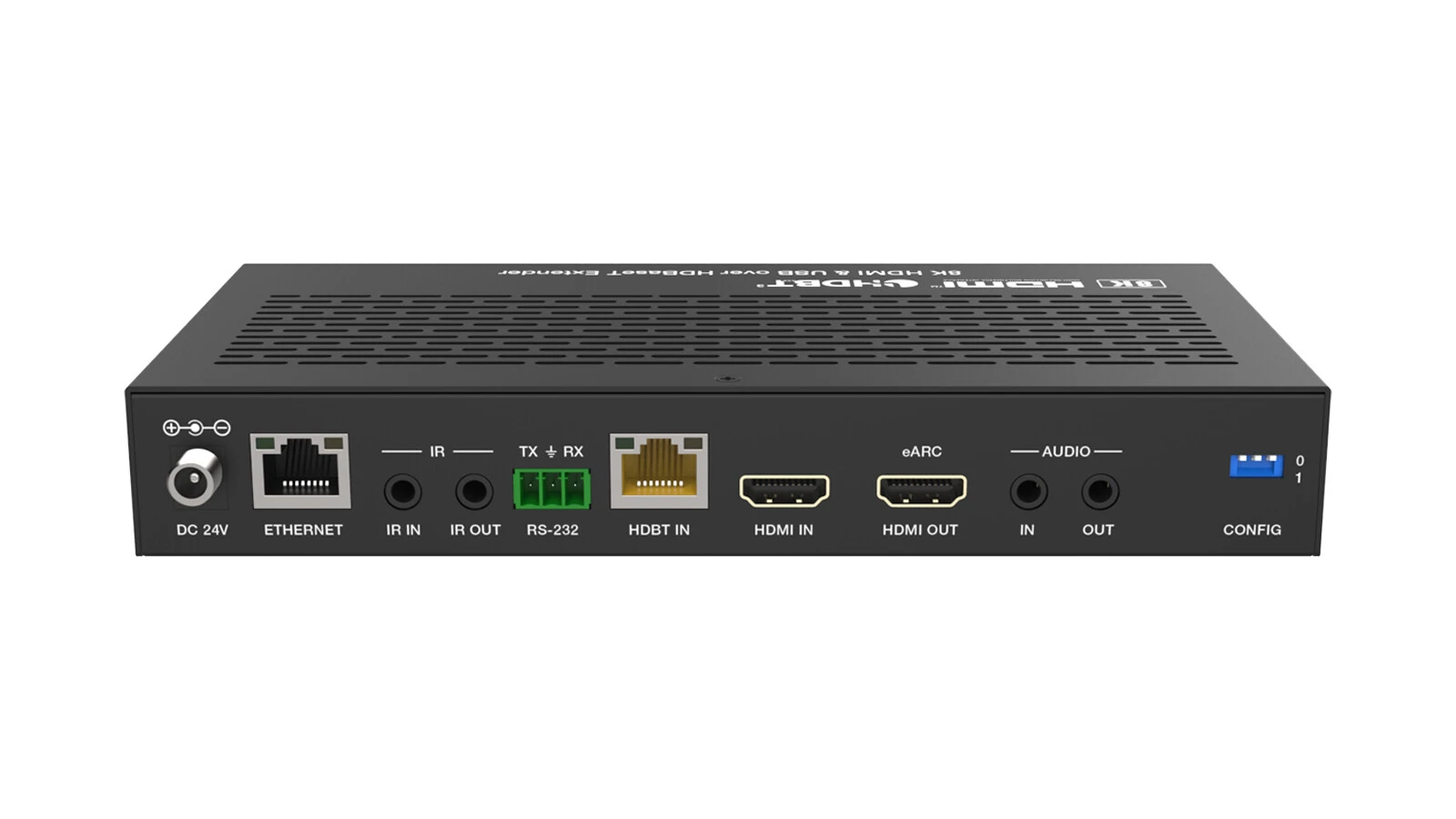

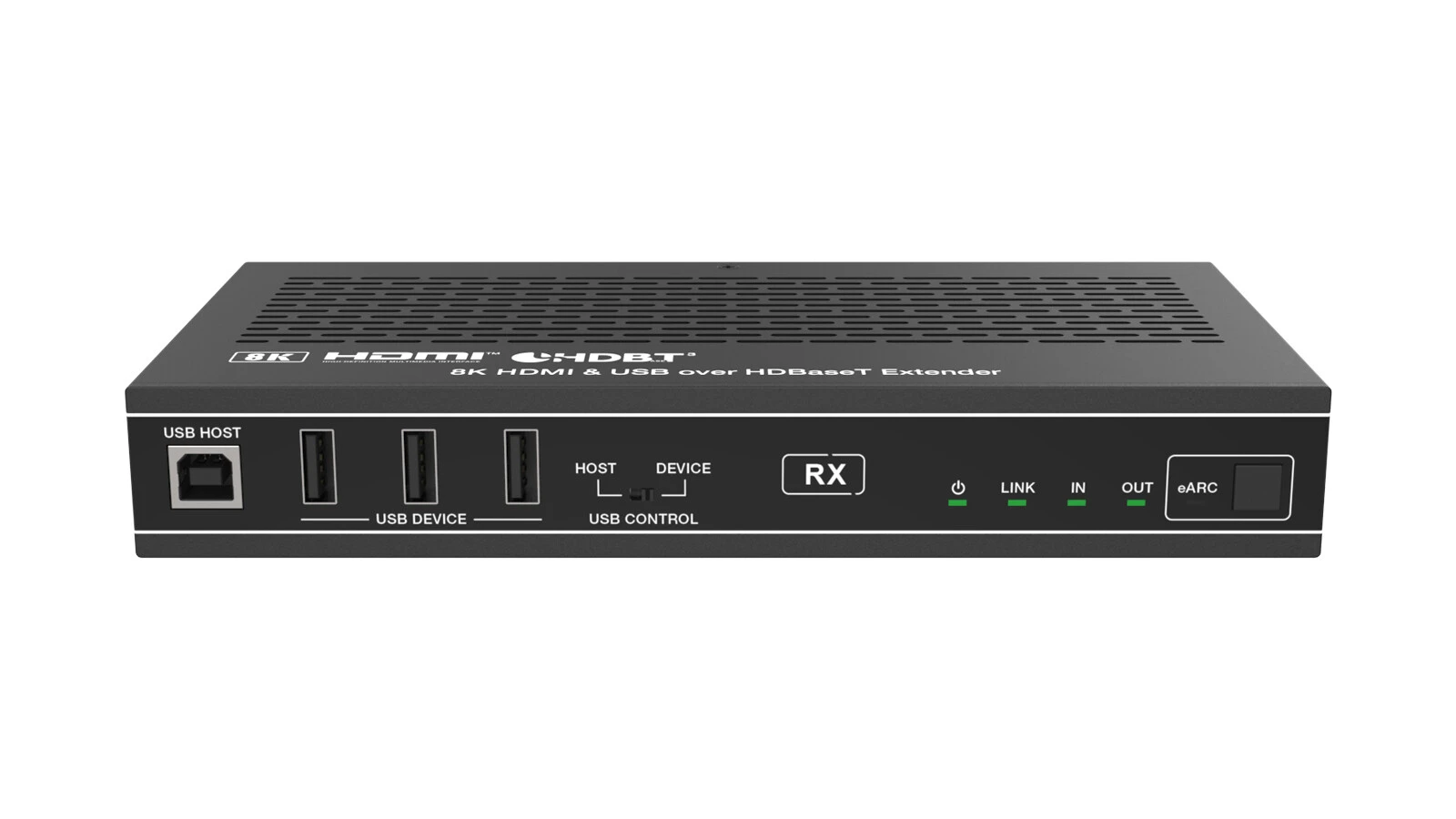

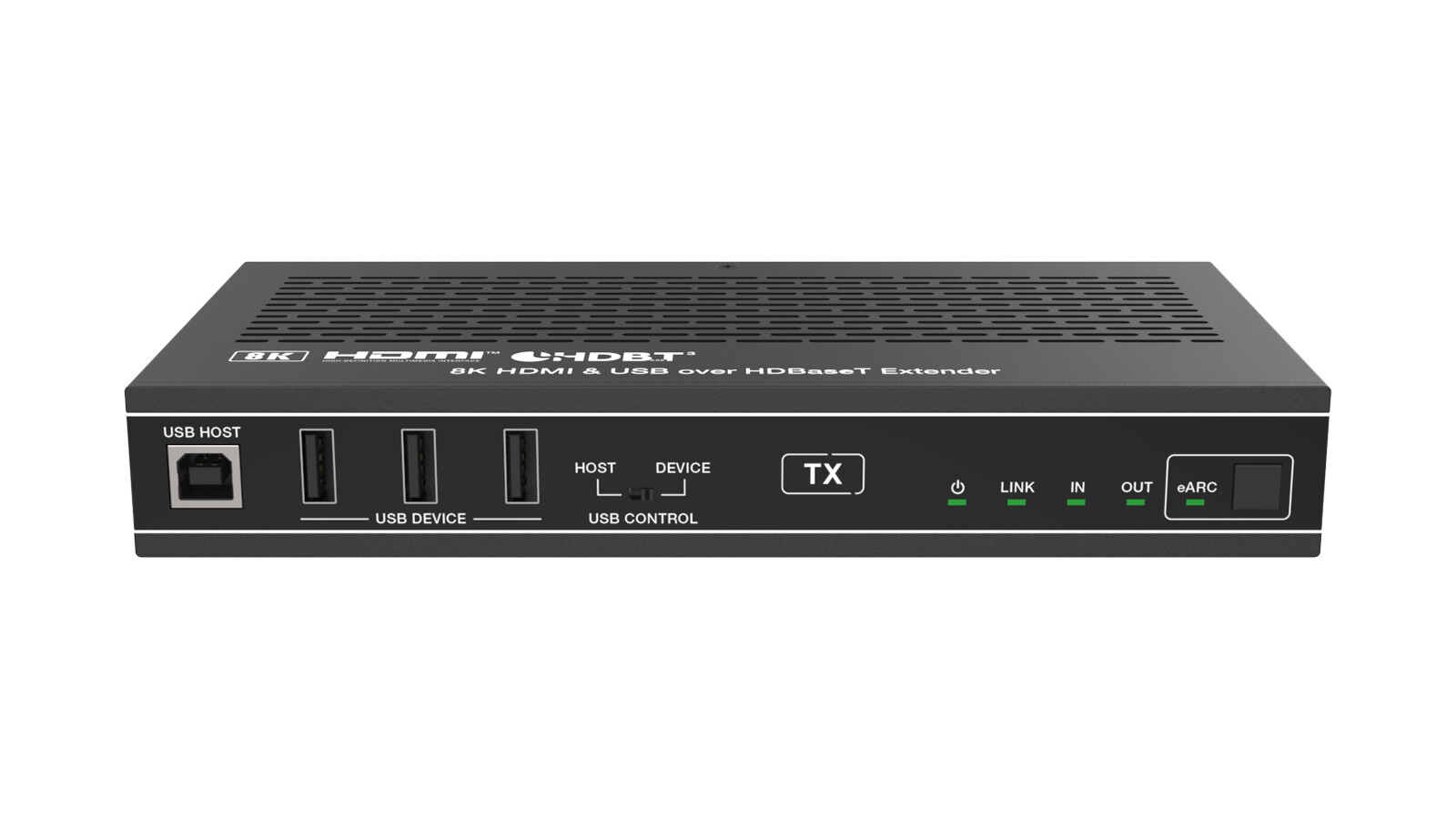

4K60Hz 4:4:4. It supports eARC/ARC from RX's HDMI output pass-through

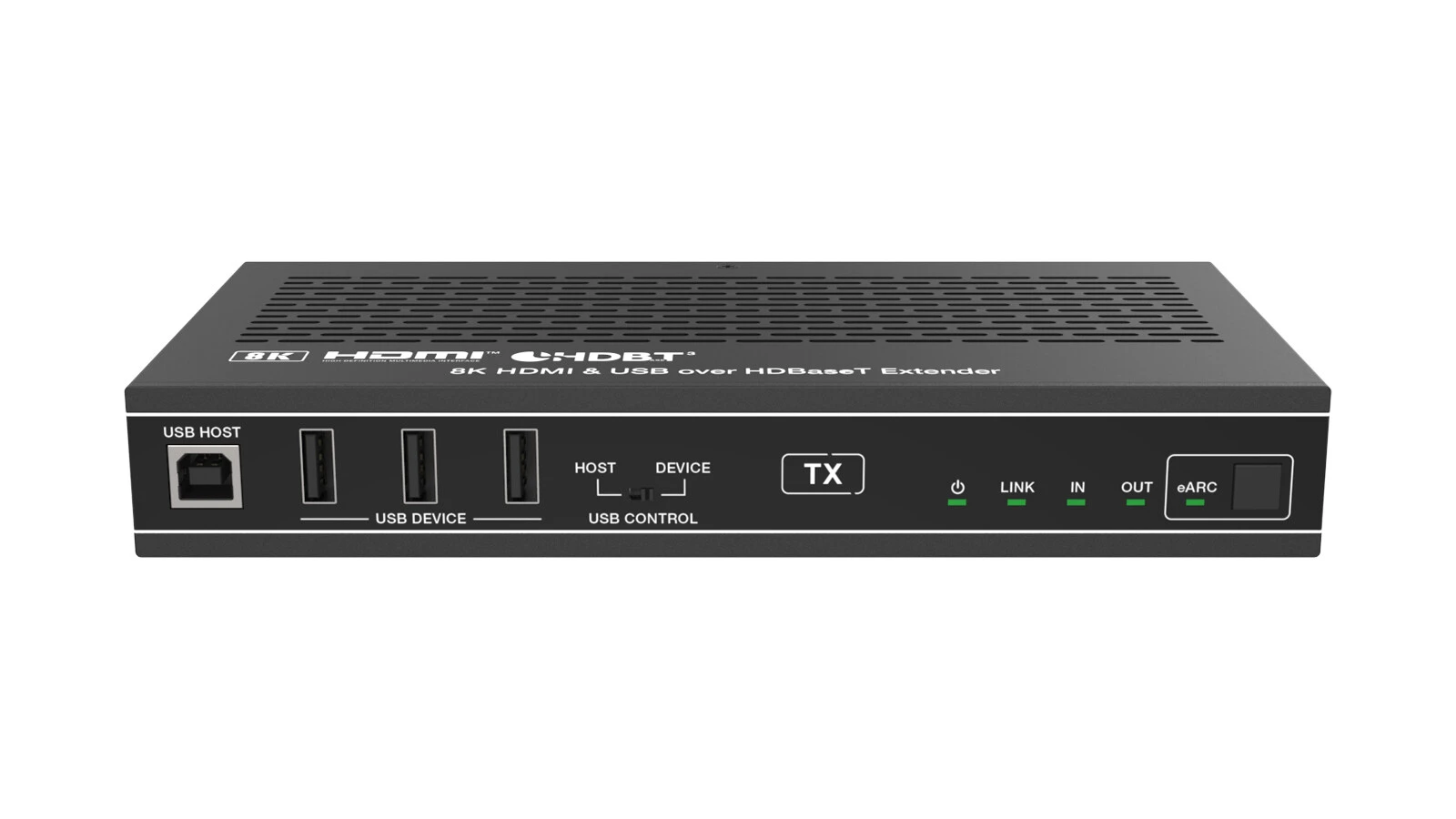

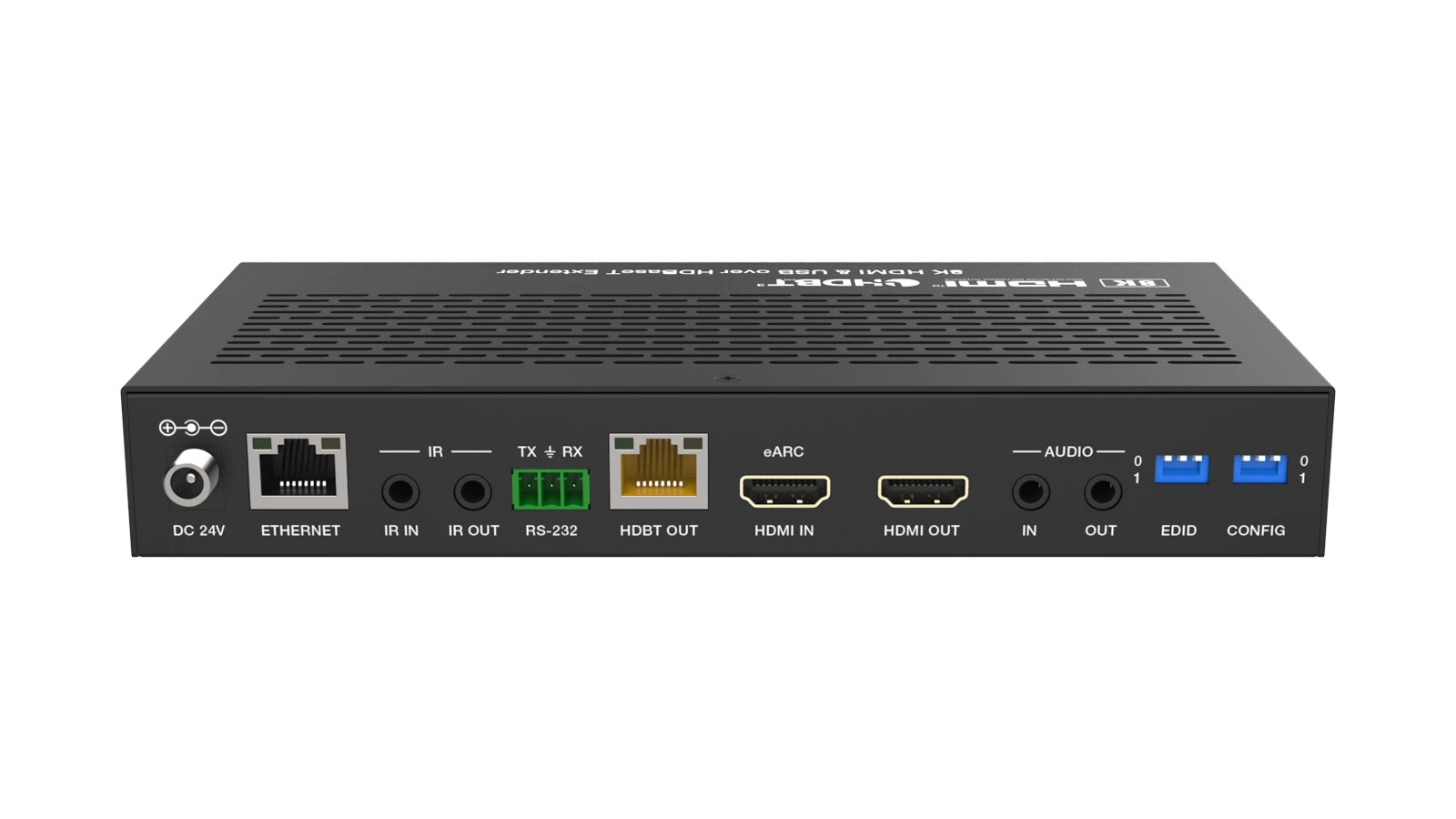

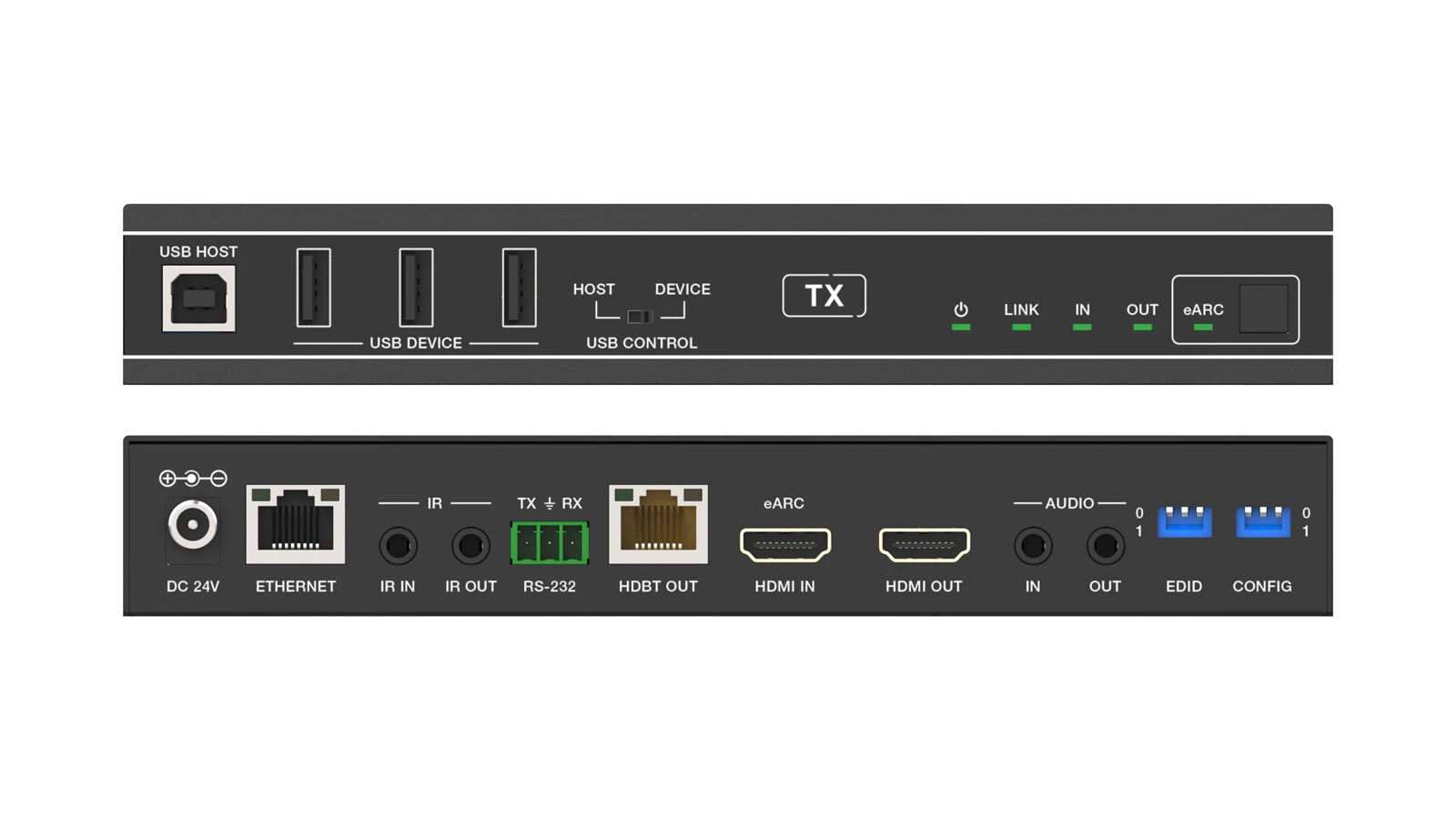

to TX's HDMI input or de-embedding to TX's HDMI output port. Besides, it

supports USB 2.0 signal transmission (Host/Device is configurable) and bi-directional POC function.

The Extender offers the most convenient solution for HDMI extension via a

single CAT cable with long distance capability, and is the perfect solution for

home/commercial application.
